Hardware Pack for M-Type Fixed Frame Screens

Hardware pack for AKIA Screens M Type version fixed-frame screens. It includes frame assembly and mounting hardware.

*Other parts and quantities may be different depending on the model and serial number of the screen.

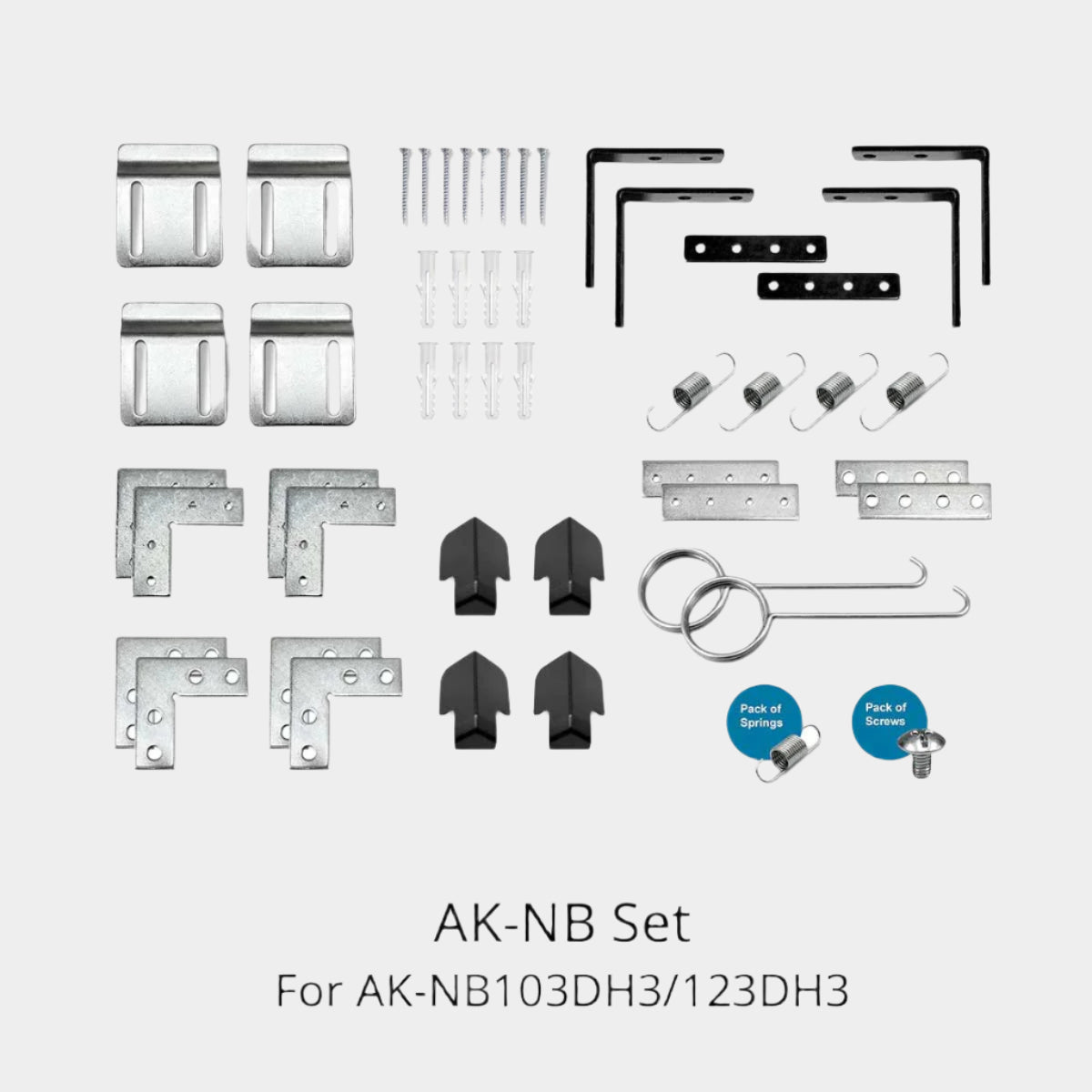

AK-NB Set

For AK-NB103DH3/123DH3

• CENTER JOINTS (​Y-FFARER-CNTJOIN-M)
• ELBOW JOINTS (Y-FFAREREF-LJOINTS-M)
• SIDE COVER CENTER JOINTS (Y-FFAREF-SCCNTJOIN-M)
• SIDE COVER ELBOW JOINTS (Y-FFAREF-SCCLJOINT-M)
• ​SPRING HOOK (Y-FFAREREF-PHOOK-M)
• ​SPRINGS - 24MM (​Y-FFAREREF-SPRING-M)
• WALL BRACKET (​Y-FFAR-WBRKET-M)
• M4X7 SCREWS (Y-FF-M4X7SCREWS-M)
• ANGLE COVERS (Y-FFAREF-ANGCOVER-M)
• SPRING - 42MM (Y-FFAR-EGSPRING-M)

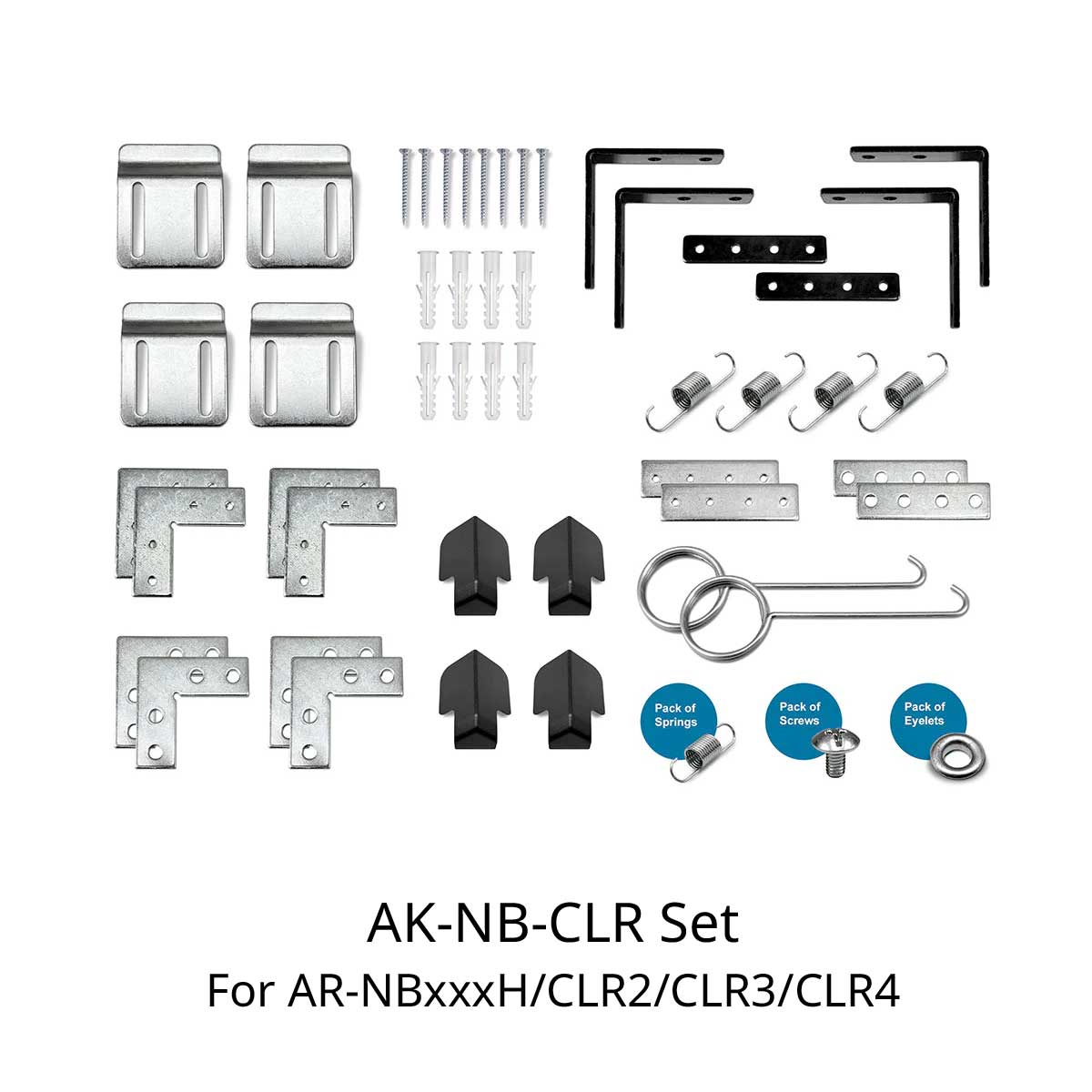

AK-NB-CLR Set

For AR-NBxxxH/CLR2/CLR3/CLR4

• CENTER JOINTS (​Y-FFARER-CNTJOIN-M)
• ELBOW JOINTS (Y-FFAREREF-LJOINTS-M)
• SIDE COVER CENTER JOINTS (Y-FFAREF-SCCNTJOIN-M)
• SIDE COVER ELBOW JOINTS (Y-FFAREF-SCCLJOINT-M)
• ​SPRING HOOK (Y-FFAREREF-PHOOK-M)
• ​SPRINGS - 26MM (​Y-FFARCLR-SPRING-M)
• WALL BRACKET (​Y-FFAR-WBRKET-M)
• M4X7 SCREWS (Y-FF-M4X7SCREWS-M)
• ANGLE COVERS (Y-FFAREF-ANGCOVER-M)
• SPRING - 42MM (Y-FFAR-EGSPRING-M)
• METAL EYELET (Y-FF-METALEYELET-M)
