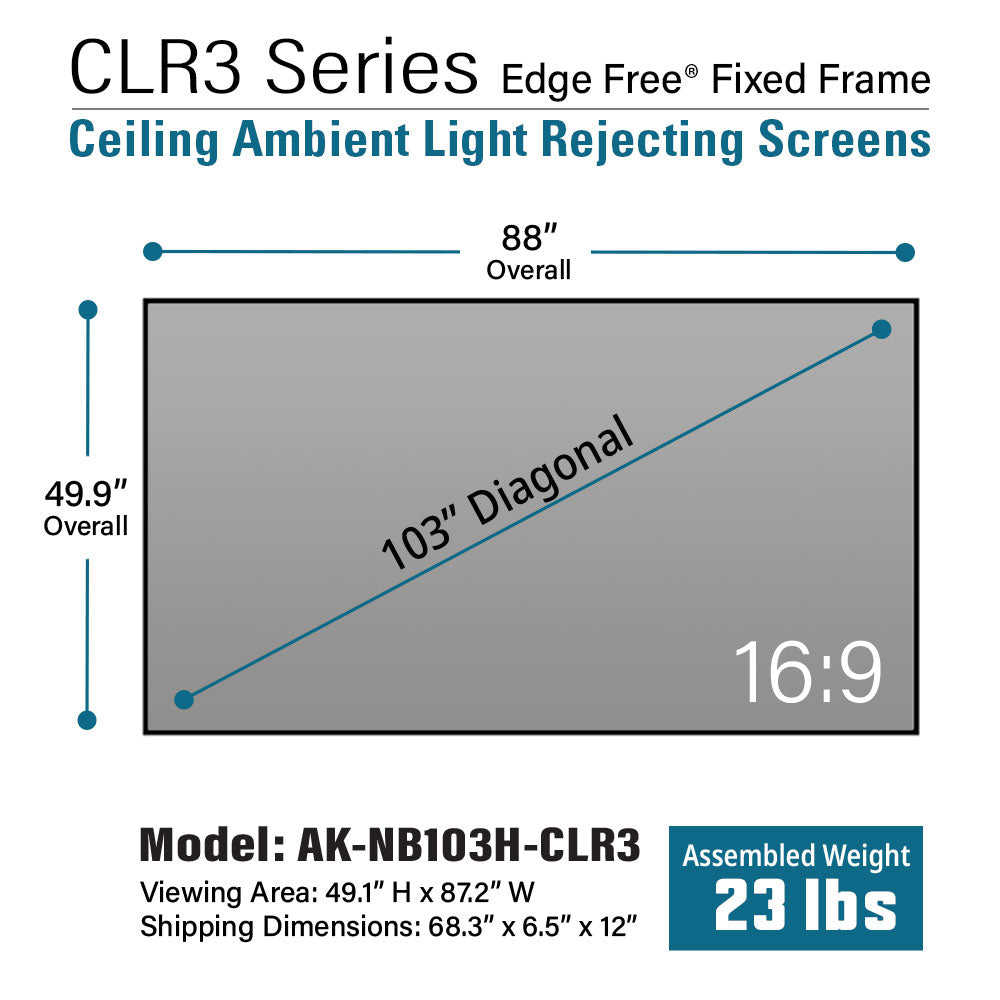

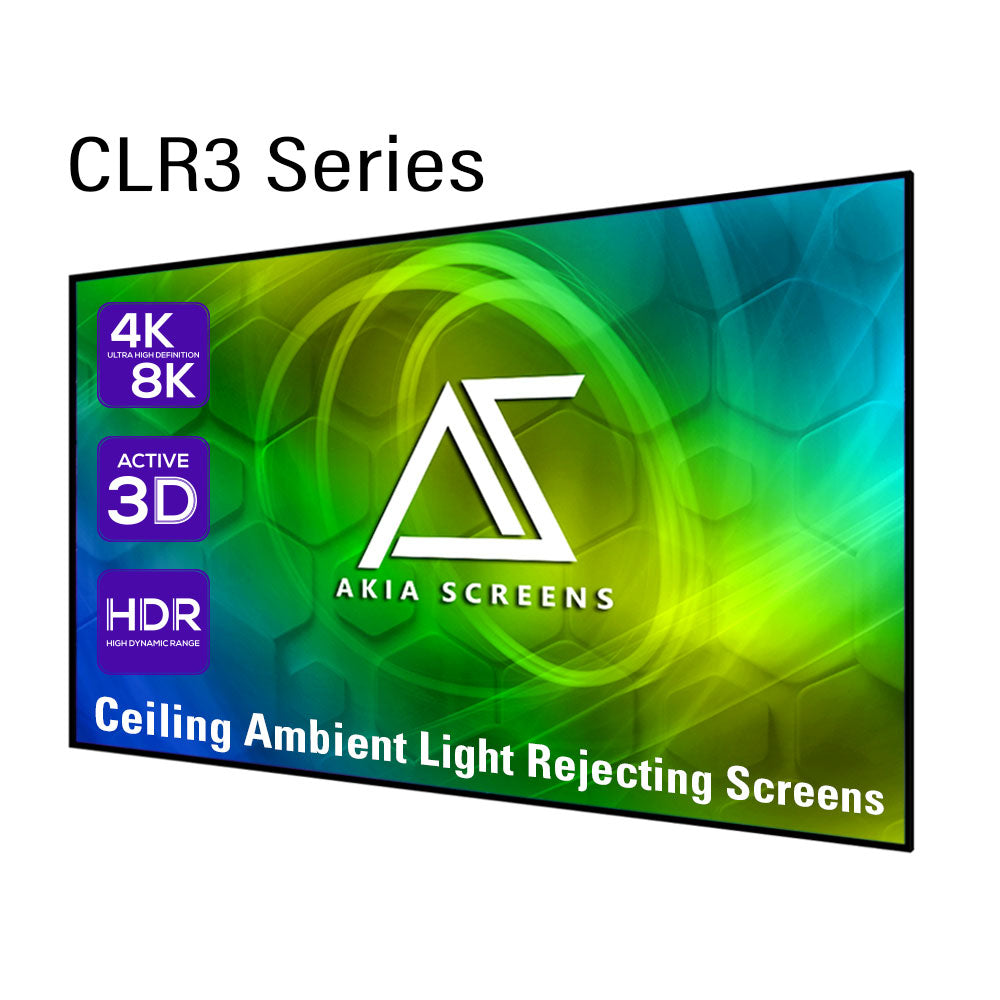

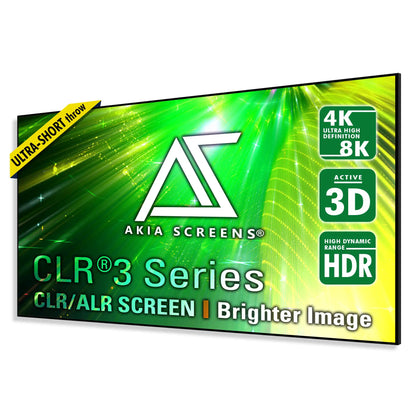

Edge Free CLR3 Fixed Frame Projector Screen | Ambient Light Rejecting (Absorbs Up to 90%) CLR/ALR Material, Active 3D, 4K/8K Ultra HD Ready, Gray Material 103"(16:9), Viewing Area : 50.2"x89.2"
Edge Free CLR3 Fixed Frame Projector Screen | Ambient Light Rejecting (Absorbs Up to 90%) CLR/ALR Material, Active 3D, 4K/8K Ultra HD Ready, Gray Material 103"(16:9), Viewing Area : 50.2"x89.2"
• Gain : 0.8
• Viewing Angle : 170°
• Certifications : N/A
Downloads
- EDGE FREE CLR® 3 User's Manual (PDF)

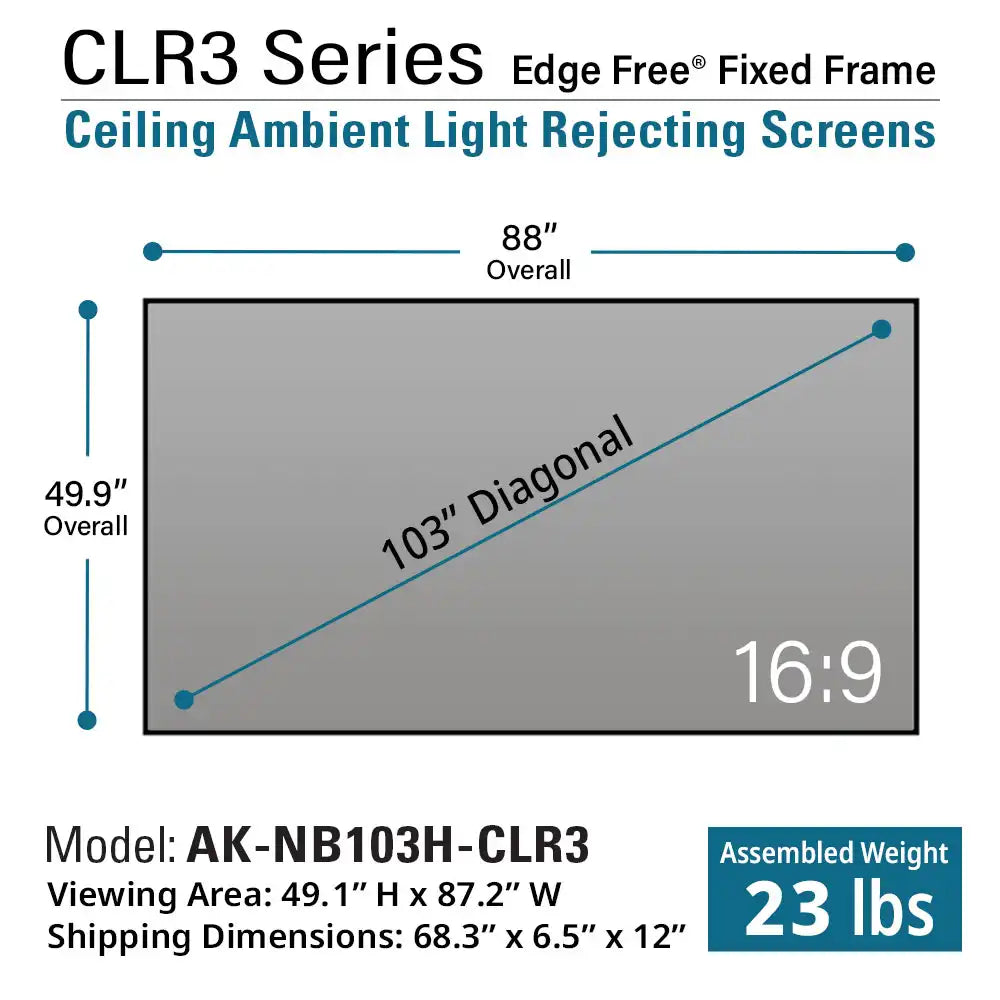

- EDGE FREE CLR® 3 M-Type Dimensions Table (PDF)
- Retro-Reflective Material Installation Tip
- How to distinguish the TOP/BOTTOM direction of the CLR® 3 and CLR® 4 materials
- Screen Material Maintenance Care
Comparison tables
-

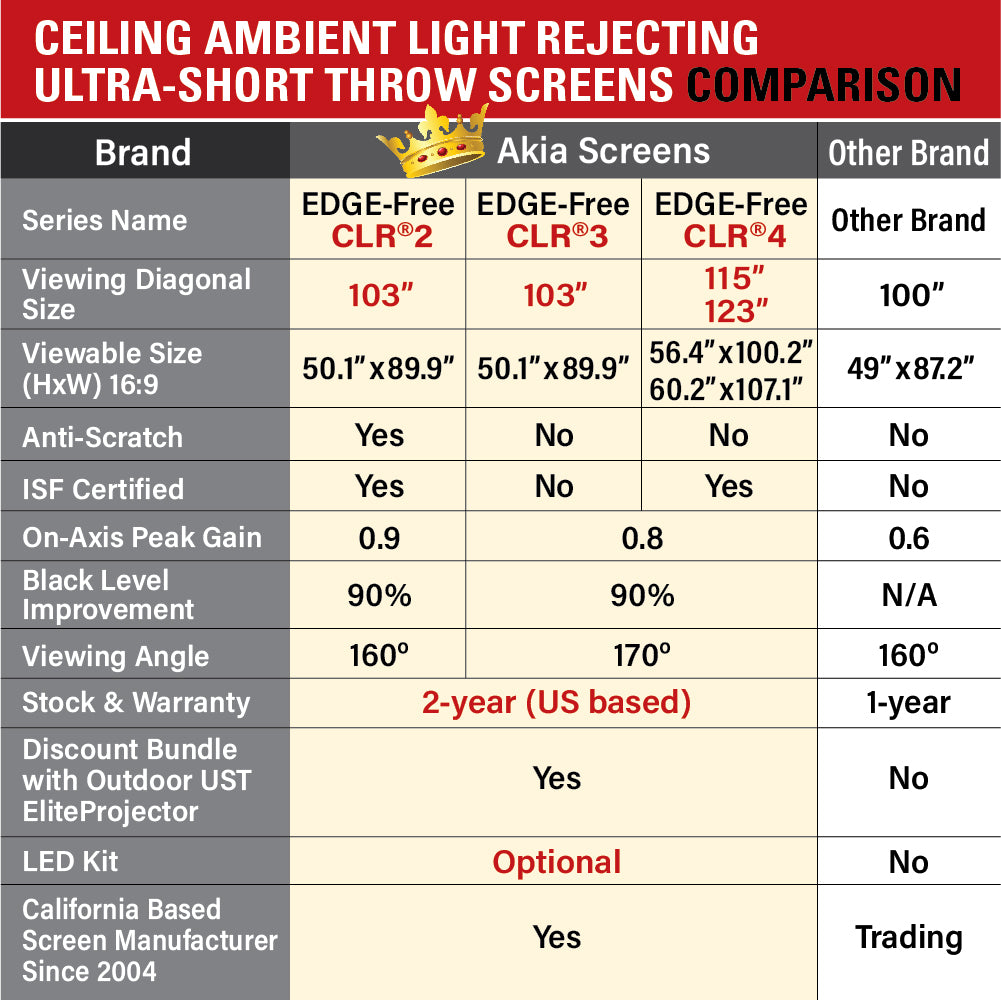

Projection Screen Materials Comparison Chart
- Ceiling/Ambient Light Rejecting (CLR®/ALR) Front Projection Materials Comparison
Others
-
AKIA SCREENS Trifold Catalog

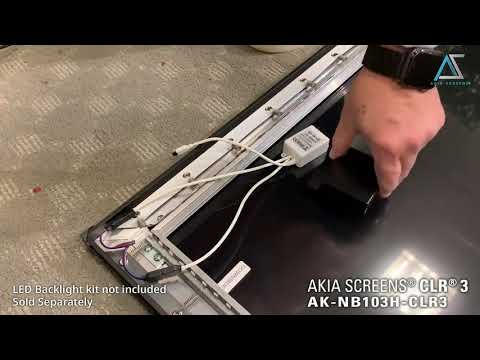

- Optional LED backlight kit with remote control - sold separately
SKU:AK-NB103H-CLR3
Couldn't load pickup availability

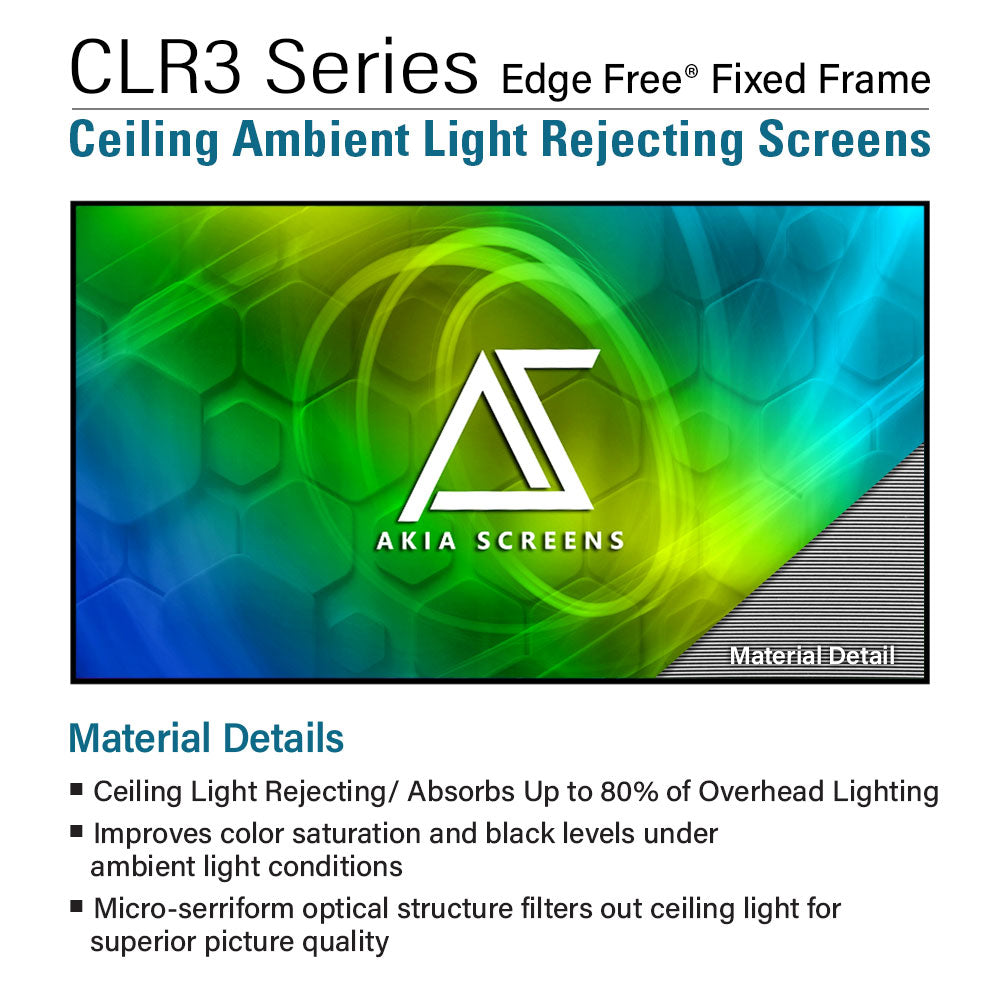

Screen Material Information
| Screen Material Name | CLR® 3 |

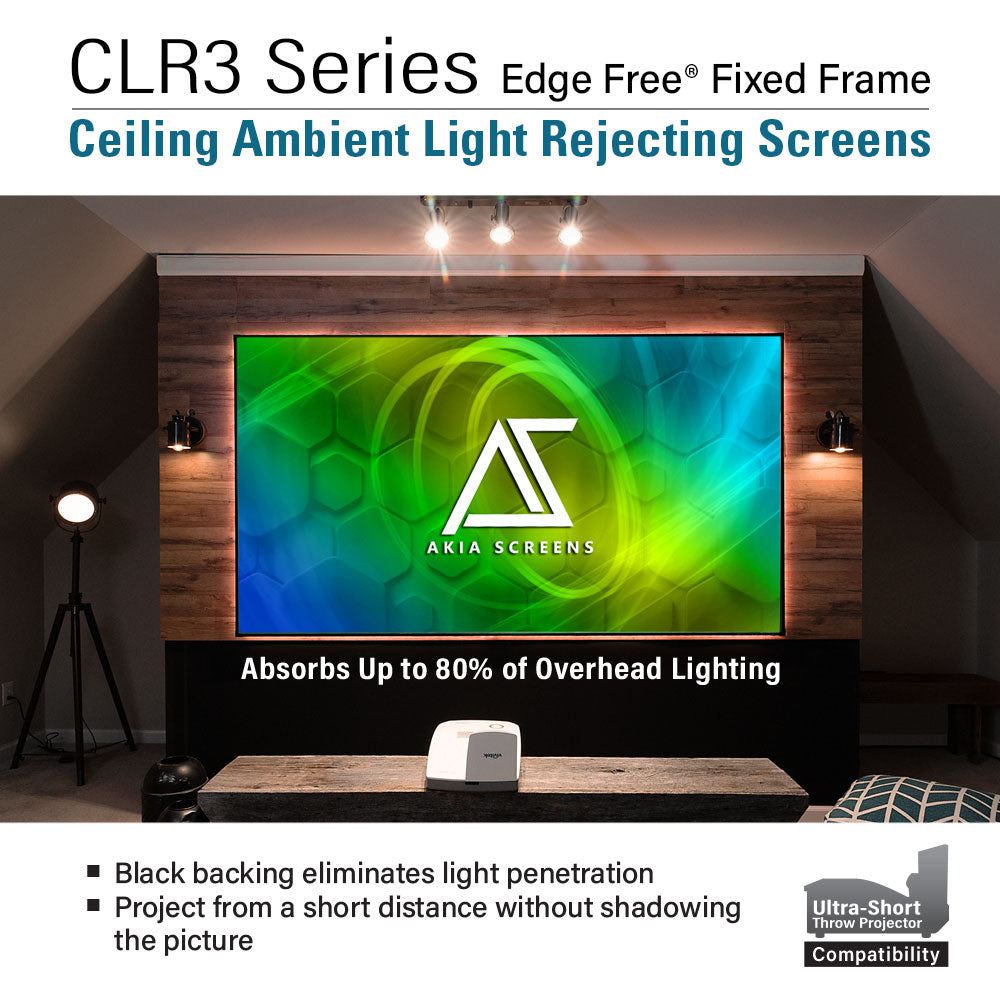

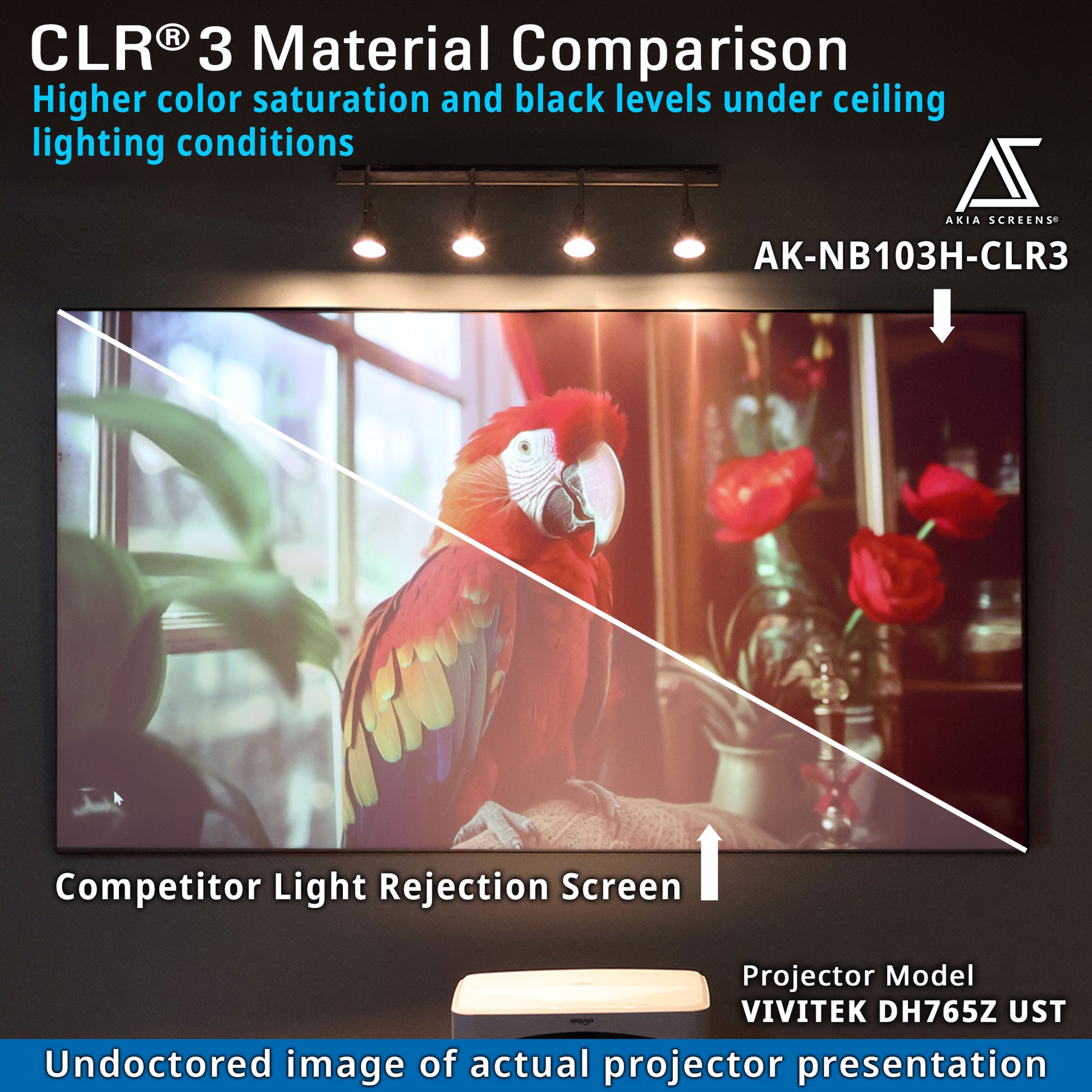

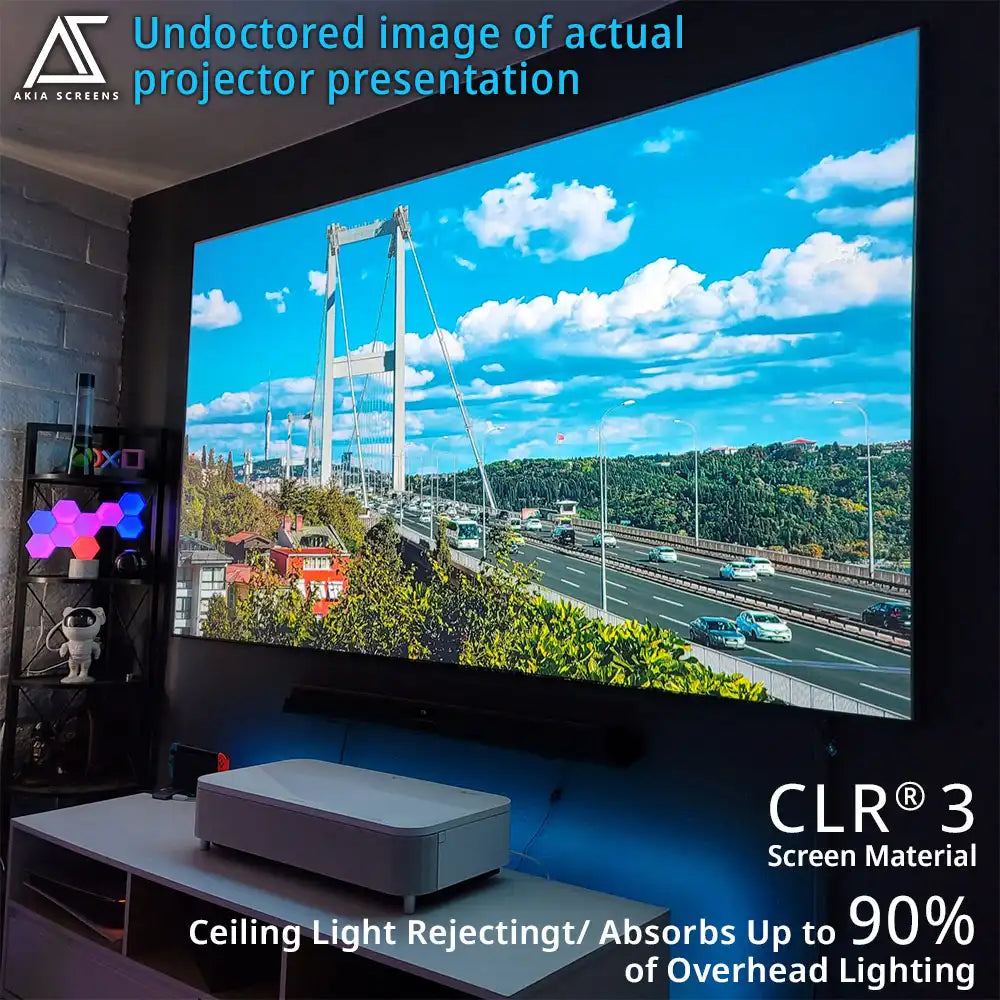

| Description | The CLR® 3 is a ceiling ambient light rejecting front projection material designed specifically for tabletop-mounted ultra-short throw projectors. It uses optical microstructures to absorb up to 90% of overhead lighting while producing exceptional image brightness, color saturation and contrast for superior picture performance. |
| Type of material | Gray (TPU) |
| Reflective technology type | Retro-Reflective |
| Ambient Light Rejecting | Yes (up to 90%) |

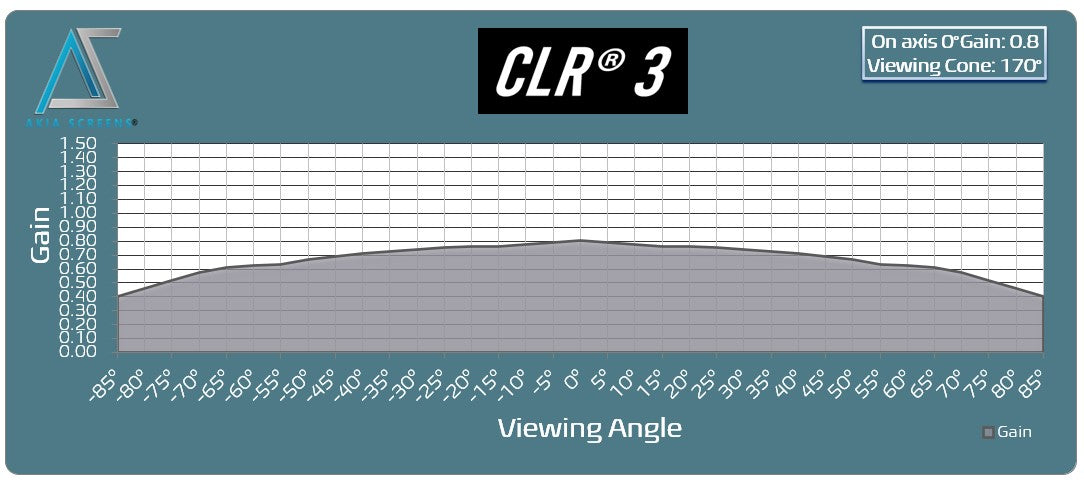

| Gain | 0.8 |
| Viewing Angle | 170° |
| Minimum Throw | 0.1 - 0.4 x Image Width |
| Black backing | Yes |
| 3D Ready | Active |
| Scatch-resistant | No |
| 4K/8K Ultra HD Ready | Yes |
| ISF Certified | No |
| Projection Type | Front |
| Projector Type Compatible | Ultra-short Throw (tabletop only) |
| Best for environments | Moderate ambient light control rooms and dark rooms |
| Recommended for | Excellent black level performance in dark rooms and preserving color purity under ceiling lights. |
Shipping & Returns
Shipping & Returns
Share
- 5 stars: 8 (57%)
- 4 stars: 4 (29%)
- 3 stars: 2 (14%)
- 2 stars: 0 (0%)
- 1 star: 0 (0%)
The Good:Screen was shipped in a very nice compartmentalized box with reinforcement on the outside of the box for very good protection.Opening the box:Each part was individually packed in zip bags or protective foam wrapping.The labeling of parts was lacking and a novice would have needed hours of pondering to figure out the placement and assembly.The assembly figures in the instructions lacked third dimensional views to accurately depict parts and how to place them.Some photos would have been helpful.A whole descriptive step was left off the instructions. At the end in regards to applying tension springs to reinforce black bezel to the main frame.It took two people to secure the center reinforcement bar because of the extremely tight fit, one to hold one end while the other gently pushed the bottom into position.Extra parts were included. Didn�t need them.Nice that long sheets of protective foam were included to lay frame and screen on during assembly.All went well on this 103 inch screen.I�ll update this review with another photo once I get my replacement Optoma Cinemax P2.
The screen quality is really nice! I was using a cheap white pulldown screen and this is much better quality in every way. It also handles ambient light from my really bright overhead fan and kitchen well.Have a few gripes which drop this from 5/5 to 3/5.- The bezel sags and it�s pretty noticeable.- I found it impossible to get the screen aligned perfectly on the frame. I got the top aligned but then the bottom corners of the frame are still visible. If the screen was 1 or 2 inches bigger it would have made alignment easy and would have saved an hour of my time.- The included mounting hardware and springs are cheap and bend / strip easily.- One of the eye holes on the screen tore and many others stretched during the building process. This screen should have included metal eyelets for the springs which would have prevented this.So my verdict, if you�re a tighter budget, it�s a great choice even with the flaws. If you can afford more, maybe consider something a little better.
The screen itself is quite nice but putting it together is quite the task. Also, the shipping process could be better. Using UPS with a required signature without allowing us to presign is not good which was the shippers choice.
I bought the CLR3 screen for a new low cost laser UST projector (1600 ANSI). It works well and I am very pleased with it.Installation requires two persons however I did it alone but it took some time (3 hours). Read the instructions VERY carefully and follow it step by step.

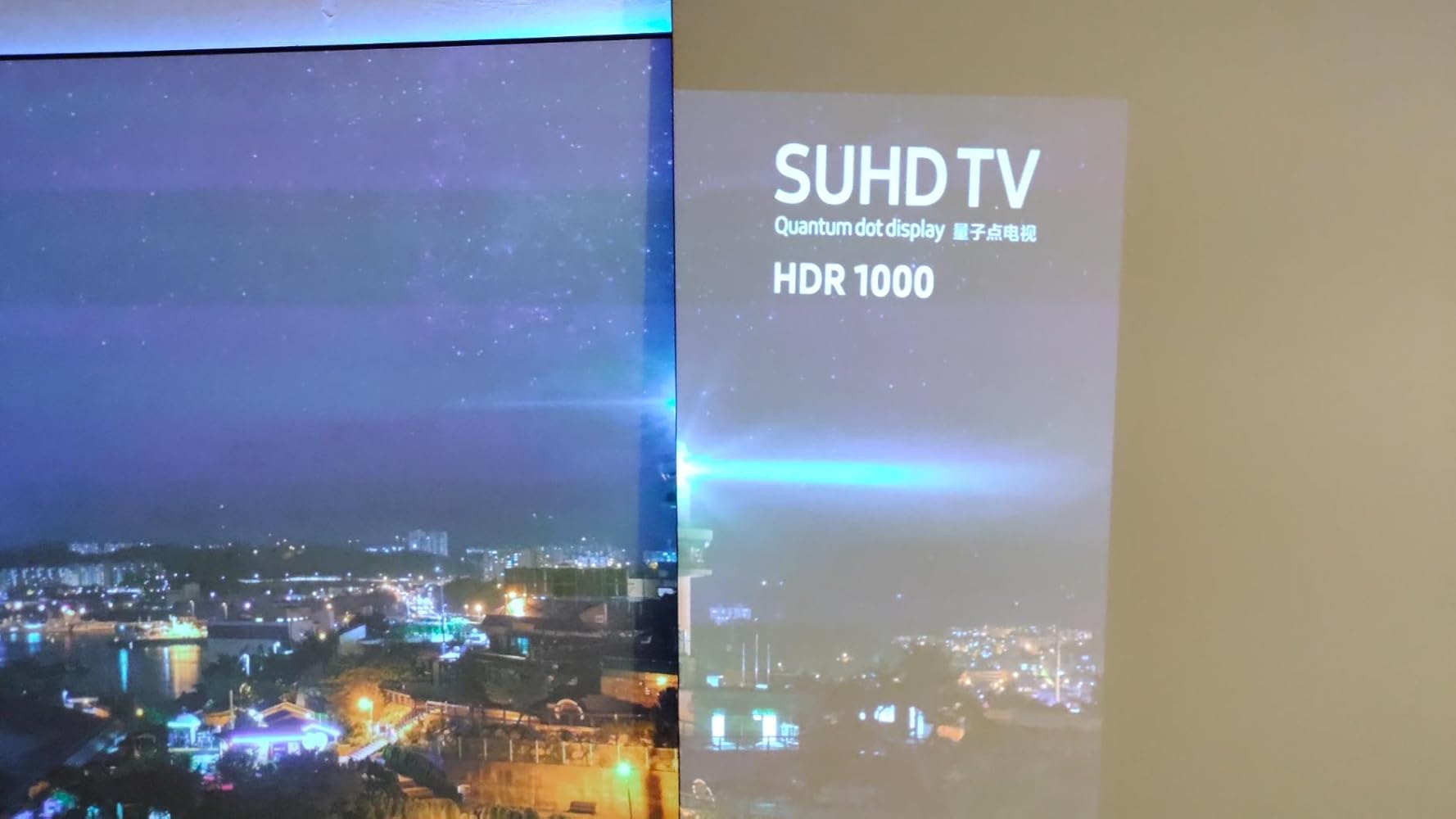

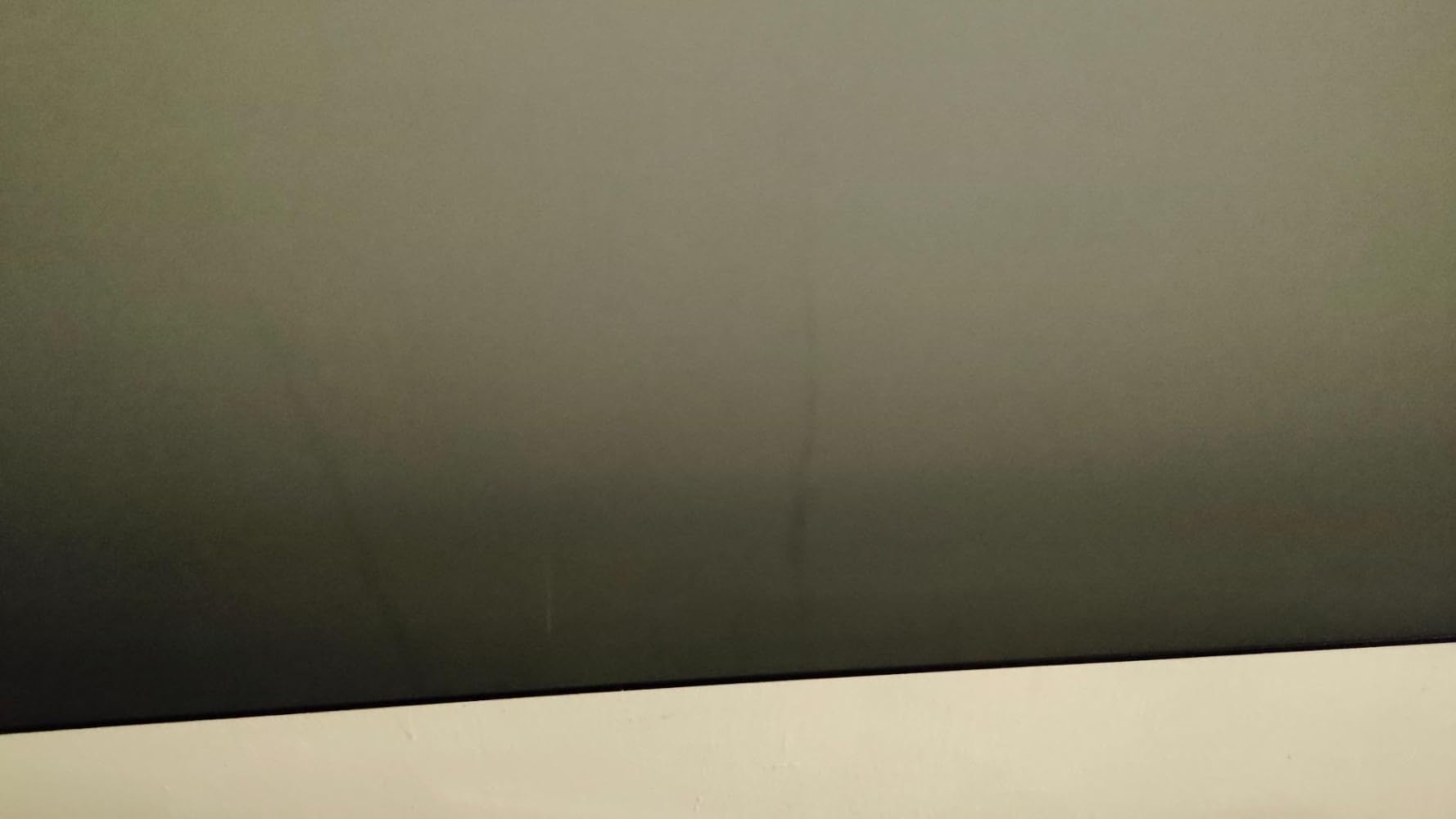

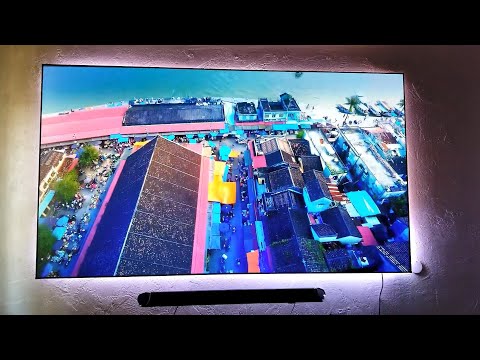

This video was shot under an led lamp that outputs 1600 lumes. Photos are comparisons vs a gray screen. Projector is a LG pf 1000u that rated at 1000 lumens.Overall this is a great screen if you have little control over ambient light or overhead light.Shipping was fast but there was damage to the box it came in but, the product did not suffer any damages.I only have one minor issue there are 2 line that run down the screen maybe a manufacturing issue. This doesn't hamper the over all experience not really noticable.This was a steal for the price offered compared to other makers which charge 4x as much.If your look for good color contrast, great black levels in an alr screen you won't go wrong with this akia screen.Edit: I also included 3 more pictures for daylight (noonish) comparisons. FYI I have my window tinted that reduces sunlight by 50%. Images on screen look washed out it's because of the projectors light output being 1000 lumens.If your using a 4k projector you may have better image quality due to higher lumens.
This is my first foray into home theater and I could not be happier. I got the silver ALR/CLR 100" version, paired with the new Philips Screeneo U5 UST 4K.Setup was, well, not exactly quick, but the directions were surprisingly clear and all went off without a hitch. You do need to be somewhat handy to mount it properly; MEASURE CAREFULLY and use a level extensively if you want it to look good. Assembly was a bit exhausting as there are dozens of hooks and springs, and hanging is a two person job. That said it's surprisingly lightweight and was very easy to hang. Also there were no flaws or other damage on the screen. It comes rolled in a tube with a protective sheet against the screen side. As long as keep the screen flat on the floor with the sheet under it during assembly there's no reason there should be any damage.The picture quality is outstanding. Contrast is excellent. Picture is amazing in a dark room of course but even during the day with blinds only (still a good amount of ambient light) I could see the picture just fine. Only when I had a bright ceiling light on did the picture become a little washed out, but I didn't even have the projector on the brightest possible setting and if I were watching something bright like a football game it would've been totally fine.I truly don't get why screens should cost $1000's. Maybe it's the difference between a $100 wine vs. a $1000 wine. How many people can actually appreciate the difference, and is it truly worth it? I can't imagine how this screen could be improved, and certainly not by an order of magnitude. My only regret is that 100" was the largest size I could fit in the room. :)
8.5/10
I've done a large number of Home Theater installs & AV Conference room installs. This screen is OK, if you have reflected Ceiling light, this screen really shows its ALR weaknesses. First of all, you cant reverse the screen for Ceiling Mounted projectors. The angle of which this screen uses to reflect light makes that impossible. So you will have to table/below screen mount your projector. And again, in large rooms with Uplighting the reflection of light will wash out the screen. There are better options. If however you do not have up lights, and just normal down lights, this screen does pretty well. It will take you a few hours to assemble.
I had been projecting my Samsung LSP7T onto a plain white wall for a couple months while researching ALR/CLR screens for ultra short throw projectors. The picture quality was good, but very washed out during daylight hours. The projector is being used in a living room with 12' ceilings and 9' windows so it was no surprise, hence the need for a UST screen. I wasn't prepared to spend $2K+ on the higher tier options, but didn't want to go with entry level either. From my research, Akia Screens are produced by Elite Screens, and at $549 for the 103" it seemed like a good compromise.Bought it, built it in about 2 hours, hung it, and am pleased overall. It is tensioned all around using small springs to keep the screen perfectly flat. Make sure you alternate opposing sides as you put the springs in. If you've ever put together a trampoline for kids, it's the same theory. Put on spring on, then put one on the exact opposite side. This will keep the tension even. I actually did top middle and bottom middle. Then left middle and right middle. And worked my way out from there. Figured it was worth the extra time and effort to ensure a perfectly flat surface with no ripples. In the end, maybe it was overkill, but the results were perfect.Daylight viewing is great for bright content like sporting events. Not so much for movies especially with dark scenes. The black level is simply not good enough to overcome the ambient light from my large windows. To be fair, I don't think this is the fault of the screen of projector. The blacks can only be as dark as the viewing surface and the daylight coming in at screen level can't be overcome. However, I am pleased to be able to watch sports in good quality in the middle of the day with no blinds drawn and windows wide open.At night or with light control is where the screen really shines. It improves the contrast and sharpness against projecting on a plain white wall. Movies really pop and I have to turn down the brightness and contrast on the projector. The only reason I'm giving the overall rating four stars is the instructions to mount the screen are minimal at best. I measured thrice and drilled once, but still had to use the adjustments on the mounting brackets to make the screen fit perfectly without using image adjustments on the projector. You want to avoid image correction as much as possible for the best possible image and to prevent oversplash of light outside the borders of the screen.
Gives a good bright picture. Would purchase this product again.
Great with living room lights on 103� cinegray perfect stretch. Took maybe 40mins from box to wall with 2 people. Super well packed as well! Paired with VAVA 4k UST.
worked exactly as expected.

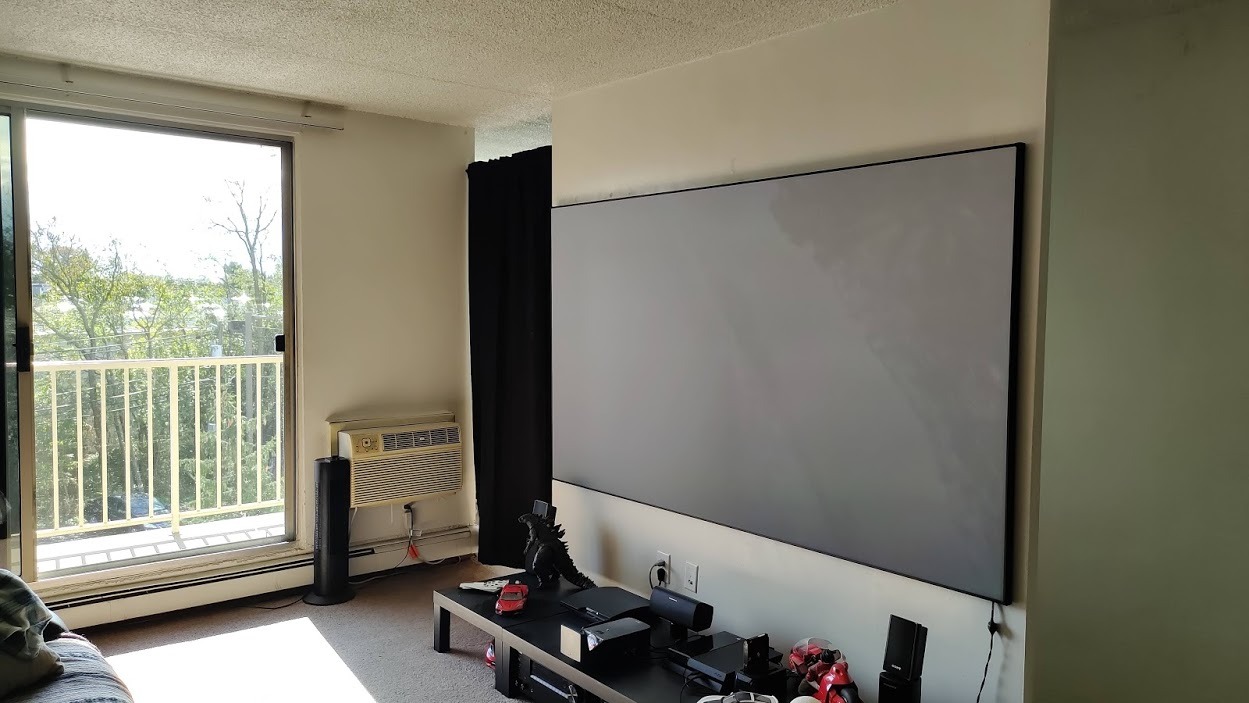

I bought this screen as I moved to a new apartment and had to set up my projector in essentially the brightest room imaginable without much ability for light control. My previous screen was a Silver Ticket 100" Grey screen and I am using a Xiaomi UST laser projector for reference. Akia is the same build and material as an Elite screens but at a better price point on amazon.The silver ticket screen is great for its price point but this screen is a significant improvement. The main thing to keep in mind is that the CLR3 material will not magically reduce wash-out in a nonlight controlled room. In the daytime the screen is very washed out which is annoying but a realistic expectation when using a projectors in a typical living room. The material does not do much to block out horizontal light from the windows. The screen really shines, however, n medium to low light situations. The contrast, blacks, brightness, and reduced glare blow away the silver ticket screen. The living room lamp no longer blows out the blacks as before. The screen material almost completely eliminates bounced light to the ceiling which is a major contributor to maintaining the image contrast. It also makes this screen appear more like a huge TV than a typical screen with light scattering everywhere. The viewing angle is excellent.Packaging was done well. The materials are well organized and the metal is smooth without sharp edges. Set up is not difficult but boring and time consuming. Two people are recommended but I did it solo without much difficulty. The screen is not heavy but I would recommend having another person assist you in hanging it up as it is very large and awkward to hold.In terms of mounting the screen the instructions and videos on Akia's site are not useful. If you have not mounted a projector screen before I would strongly suggest you take your time to plan it out. You have limited ability to manipulate the image position/size on a UST than on a standard projector. A couple of laser levels, painters tape to mark off borders, measuring tape, ruler, and a level were all necessary for me to get the perfect location on the first try. If you mess up the brackets can be positioned slightly higher or lower and the screen can slide horizontally. I used the included drywall anchors which were fine.
This is my 2nd screen actually in the last month, though I didn�t realize, the first screen did not have the metal eyelets to install within the holes on the screen. Currently spring connected directly to the material. I checked the first box and they were not taped to the outside of the box how the 2nd screen was delivered. If Akia reads this, please reply and let me know you will get me a bag of the eyelets so I can correct the installation. ;)As far as the ALR CLR screen, it states 2 people to install, but I did both of mine by myself to include hanging on the wall, both are the 103� model. Currently have a Philips Screeneo U4 projected onto one screen, waiting for the Screeneo U5 to be released Mar 2023 to utilize the 2nd screen, but quite pleased with the picture quality. My movie space is a very dark room and the U4 only outputting 1080 looks decent. Very much looking forward to the U5 to have 4K back in my movie space. The LG OLED 77� moved up to my living room as the 103� is just so much better even stepping down to 1080 for a few months.For the price of this screen, really hard to beat it, does what it says with blocking out ambient light especially from above and perfect companion for ultra short throws.
